Tutorial: using NeurEco GUI on a Discrete Dynamic problem

The following section will use two test cases:

• The test case Temperature forecasting.

• The test case Nonlinear oscillator.

These test cases can be selected directly from the template window of the GUI:

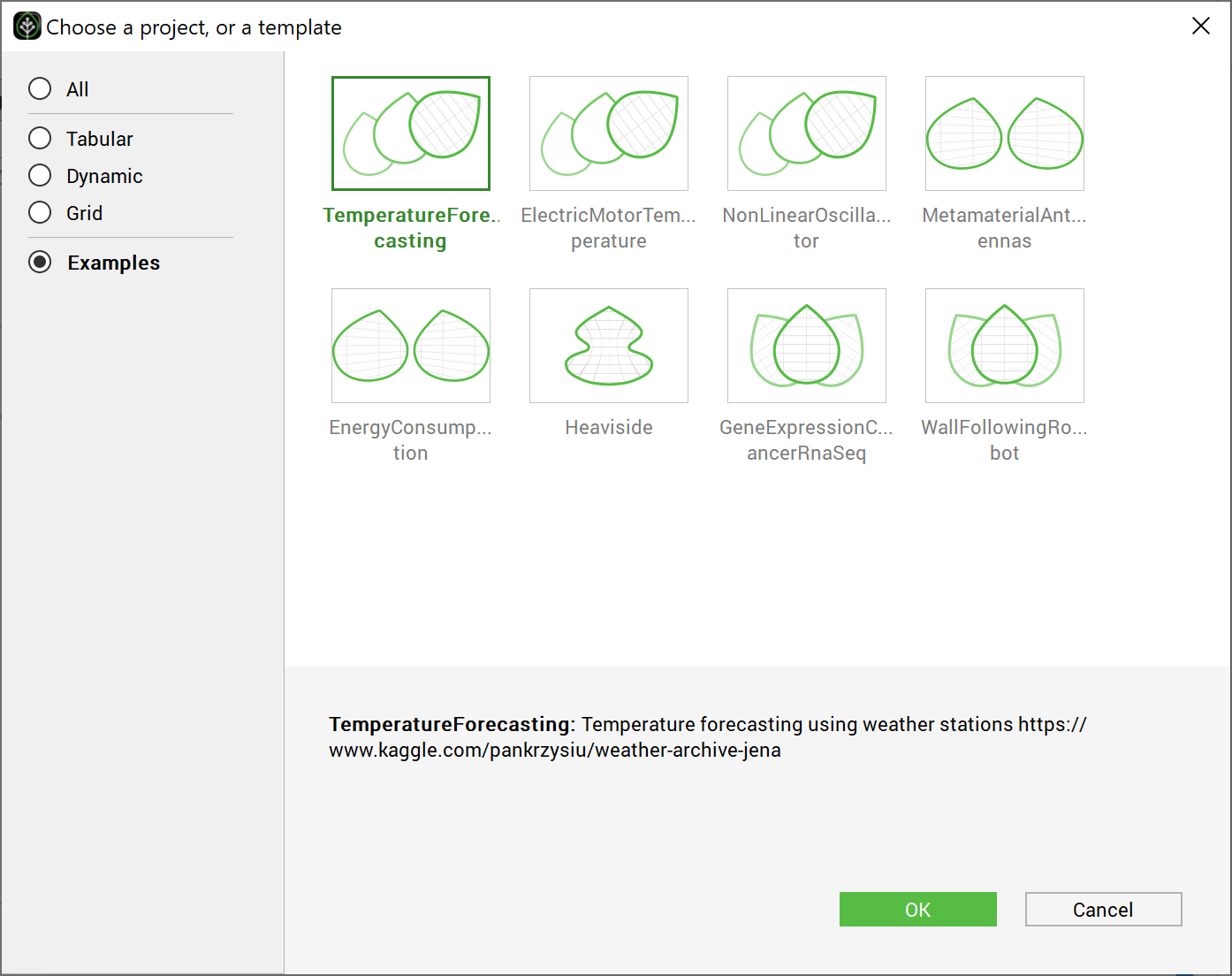

Choosing the test case Temperature forecasting directly from the GUI examples

Discrete Dynamic proposes various settings for the build and the evaluation. This tutorial is divided into two parts: Building a Discrete Dynamic model in the GUI and Evaluating a Discrete Dynamic model in the GUI.

Building a Discrete Dynamic model in the GUI

There are two main options to build a Discrete Dynamic model:

• with a validation percentage, the validation data is chosen from the training data by NeurEco

• with validation data, the validation data is set manually.

For each option, the build can be done without selecting any of the advanced settings (steady state and hidden state, see Build parameters), or with these settings provided by the user.

Create an empty directory (TemperatureForecasting Example), extract the Temperature forecasting test case data there. The GUI automatically extracts the data and creates the project in the chosen directory. The created directory contains the following files:

Content of the test case Temperature Forecasting from the GUI

The TemperetureForecasting directory is the one used by the GUI alongside the NumPy data files. The rest is used by the other NeurEco interfaces.

Note

To create the GUI project without using the template window, create a new directory called TemperatureForecasting and copy the data NumPy files into it. Go to the File menu, and click New, then choose the Dynamic solution and the Discrete Dynamic template. Choose the name of the project and the name of the model as: TemperatureForecasting and TemperatureForecasting and click ok.

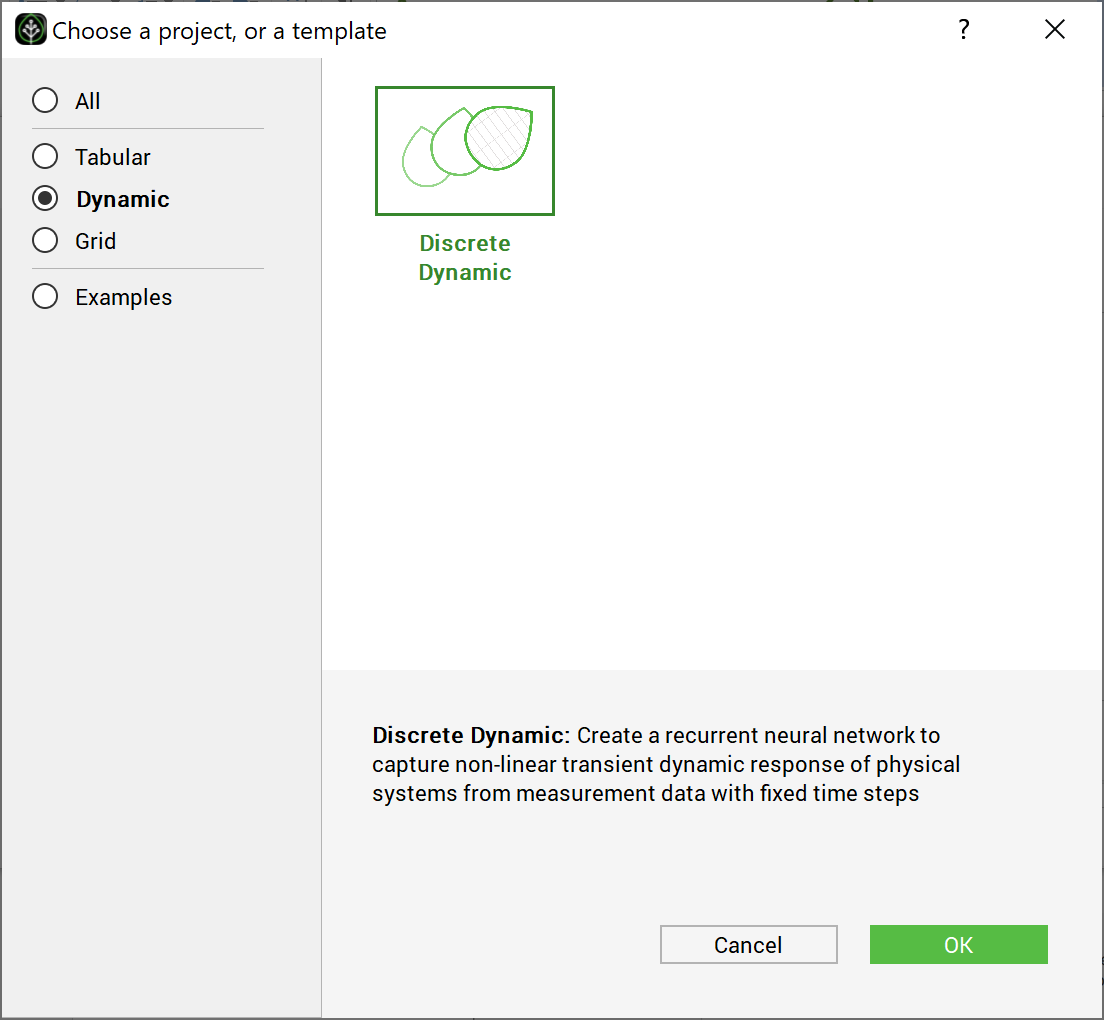

Choosing the test case TemperatureForecasting directly from the GUI examples 2

The main window looks as follows at this stage:

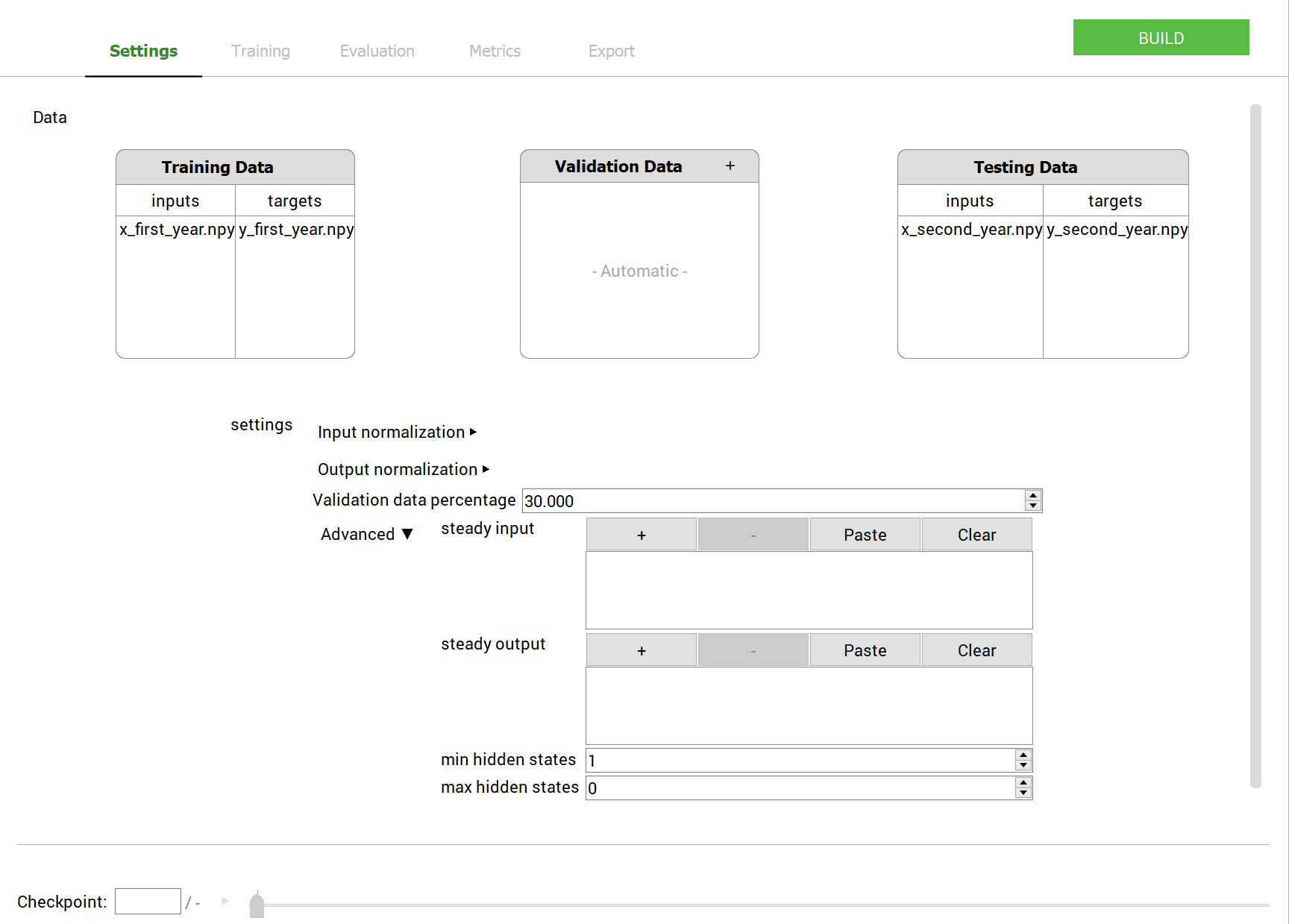

Main window initial look after extracting the data: test case - Temperature Forecasting

Simple build without validation data

To build a model without any of the advanced settings provided and without manually setting validation data:

• Provide the Training data

• Click the Build button in the GUI.

In this case NeurEco takes the last 30% of every provided trajectory in training data as validation data.

During the build NeurEco saves the intermediate modes to the checkpoint file. In term of performance, every new model in the checkpoint is an improvement of the previous one. Note that at the end of the build, the last model in the checkpoint corresponds to the final mode.

Any intermediate model can be used as if it was the final model: it can be evaluated on the new sets of data, exported, etc. Use the checkpoint slider to select a specific intermediate model. When an intermediate model is selected, the GUI updates the plot of reference vs prediction and the Sensitivity analysis plot (see Sensitivity analysis for Dynamic solution).

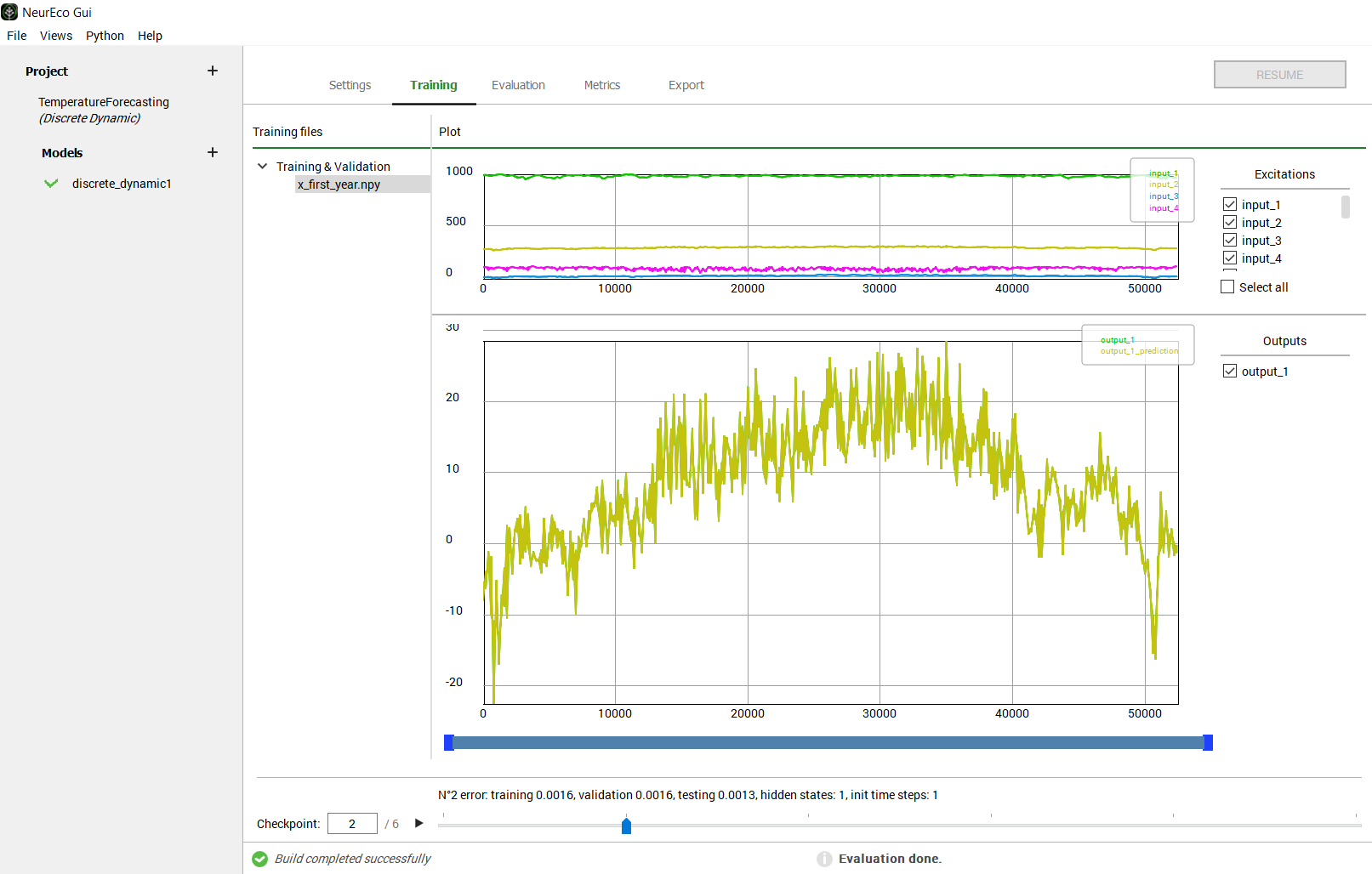

GUI operations: selecting an intermediate model: test case - Temperature Forecasting

To perform a sensitivity analysis (see Sensitivity analysis for Dynamic solution) on any intermediate model:

• Switch to the Metrics panel

• Choose an intermediate model using the checkpoint slider

• Choose a data set from Evaluation files (the testing data for this example)

• Choose the initialization (see Sensitivity analysis for Dynamic solution)

• Click on any output node in the Network sensitivity section (there is only one for Temperature forecasting test case)

• The plot displays the sensitivity analysis graph as in figure below:

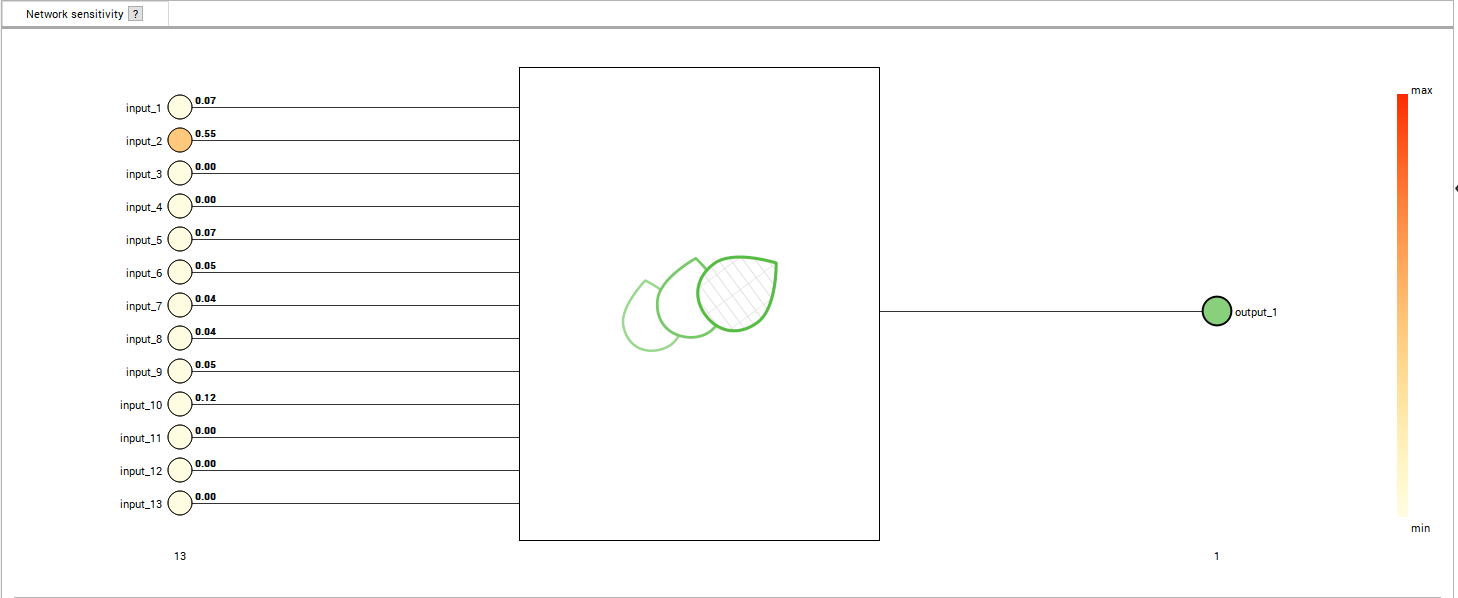

GUI operations: Performing Sensitivity analysis: test case - Temperature Forecasting

Simple build with validation data

For the Temperature forecasting test case:

• Create a new model in the TemperatureForecasting project by ether:

  • Creating from scratch: click on + in front of Models

  • Cloning setting of already existing model: right click on the model name and choose Clone

• As before, set the first year data as Training Data

• Set the second year data as Validation Data

• Click the Build button

Note that although the 30% validation data is set, NeurEco will not take it into account because the Validation Data are provided.

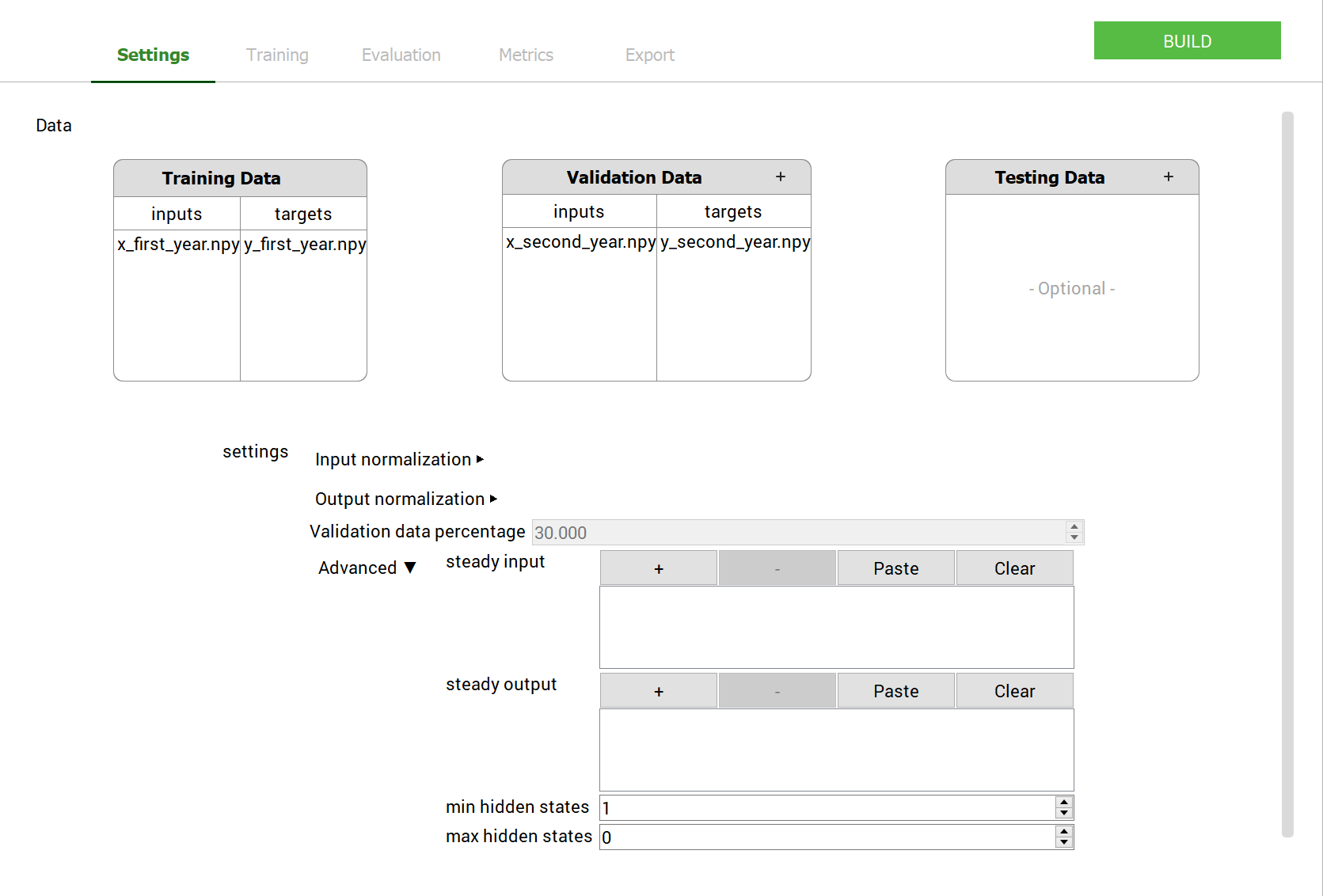

Main window initial look after extracting the data: test case - Temperature Forecasting 2

As previously, any intermediate model can be used as if it was the final model: it can be evaluated on the new sets of data, exported, etc. Use the checkpoint slider to select a specific intermediate model. When an intermediate model is selected, the GUI updates the plot of reference vs prediction and the Sensitivity analysis plot (see Sensitivity analysis for Dynamic solution).

Advanced build

This part uses Nonlinear oscillator. Create an empty directory (NonLinearOscillator Example), and extract the Nonlinear oscillator data there. The GUI will automatically extract the data and create the project in the chosen directory.

The main window looks as follows at this stage:

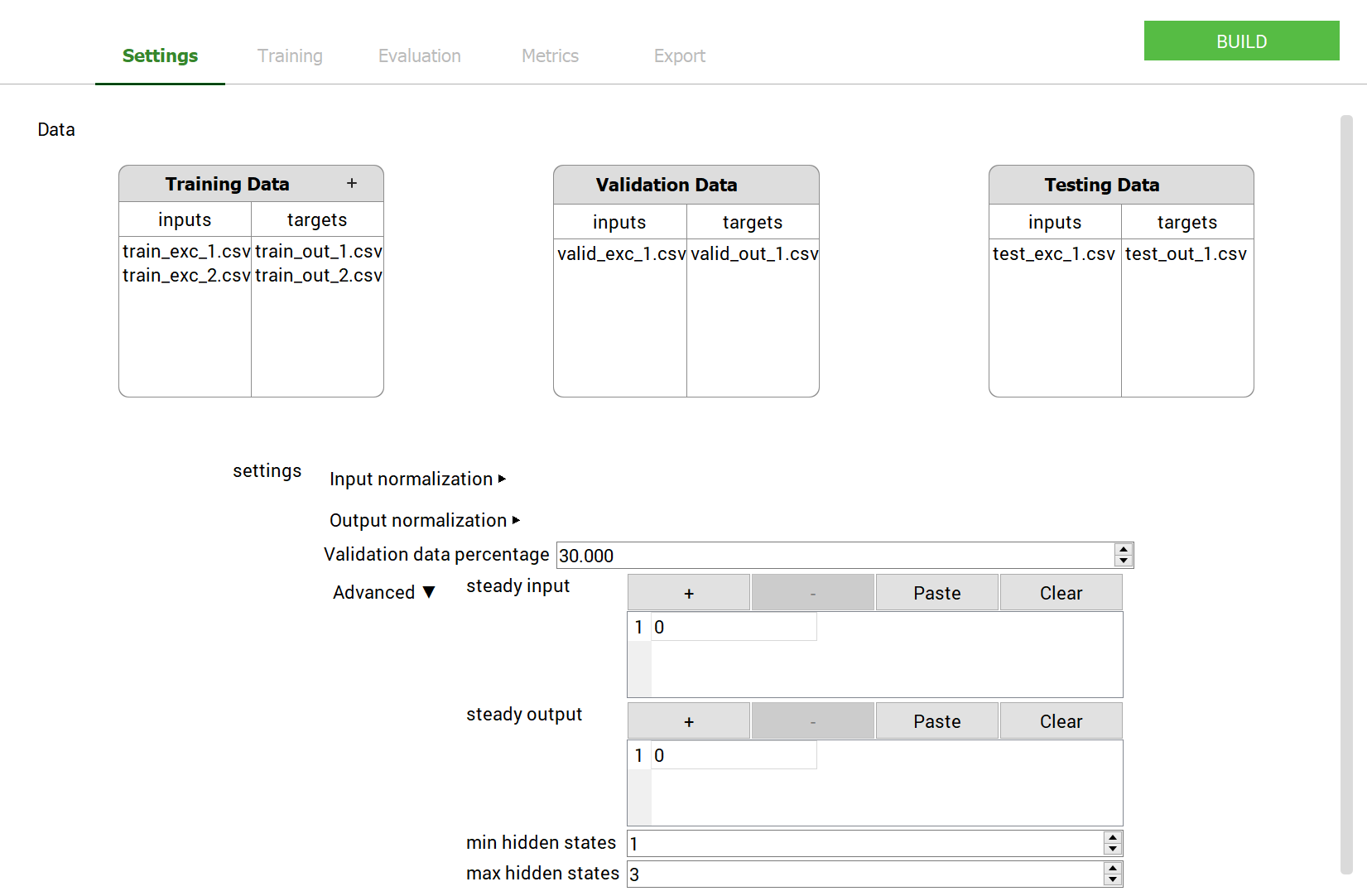

Main window initial look after extracting the data: test case - Non linear oscillator

From the equation governing the outputs, one can see that a stationary state (see Advanced parameters) is described by the excitation set to \(0\) and thus the corresponding output to \(0\):

• Set Advanced: steady input to \(0\)

• Set Advanced: steady output to \(0\)

Note

The Discrete Dynamic model supports providing of only one steady state of the model.

The governing equation is of the second degree, which could imply that two hidden states (see Advanced parameters) are sufficient to describe the system. Here, one more hidden state is added to take the non linearity into account:

• Set Advanced: max hidden states to \(3\)

To build the model:

• Click on the Build button

The results on the training data:

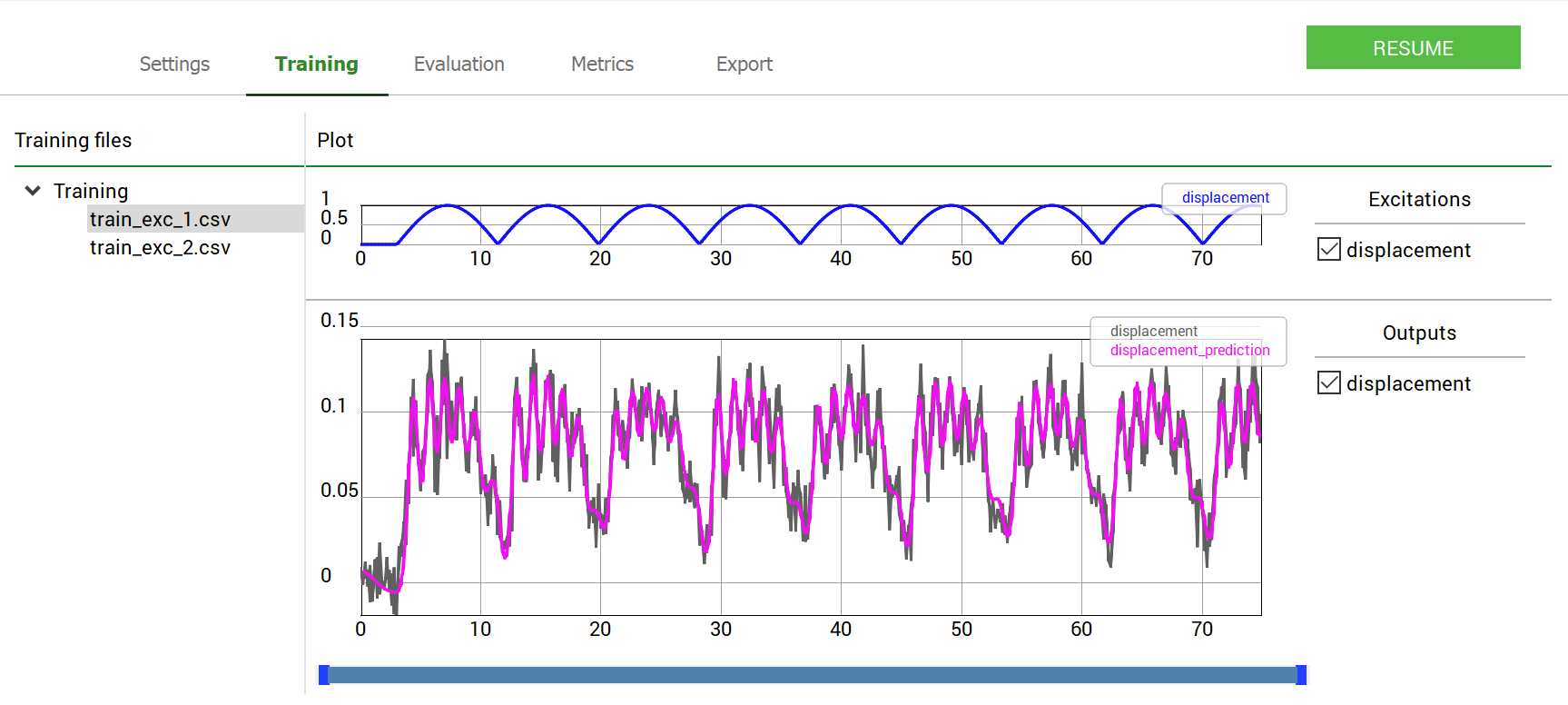

GUI operations: selecting an intermediate model: test case - Non linear oscillator

Evaluating a Discrete Dynamic model in the GUI

There are two options to evaluate a discrete dynamic model: with and without initial conditions (see. Evaluate NeurEco Discrete Dynamic model with GUI).

When using the GUI, evaluating the model without initial condition is straight forward:

• Switch to the Evaluation panel

• In Evaluating files section: select the data set on which to evaluate

• Click the Evaluate button:

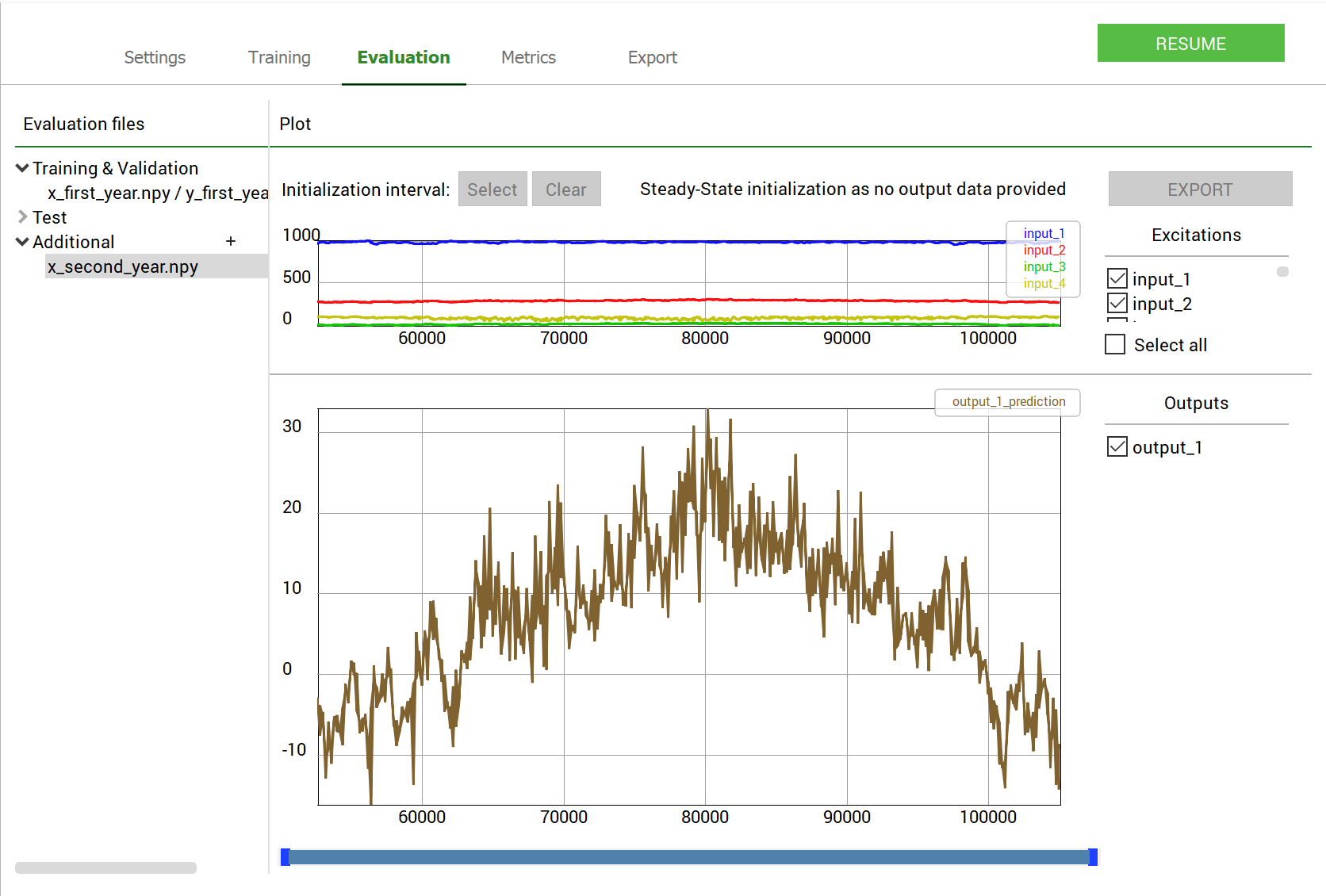

GUI operations: evaluating an intermediate model without initial condition: test case - Temperature forecasting

To provide an initial condition (recommended):

• Switch to the Evaluation panel

• In Evaluating files section: select the data set on which to evaluate

• Click on Initialization interval: select button. A cursor appears on top of the plots, place the two ends of the cursor on the interval to select as initialization interval

• Click the Evaluate button

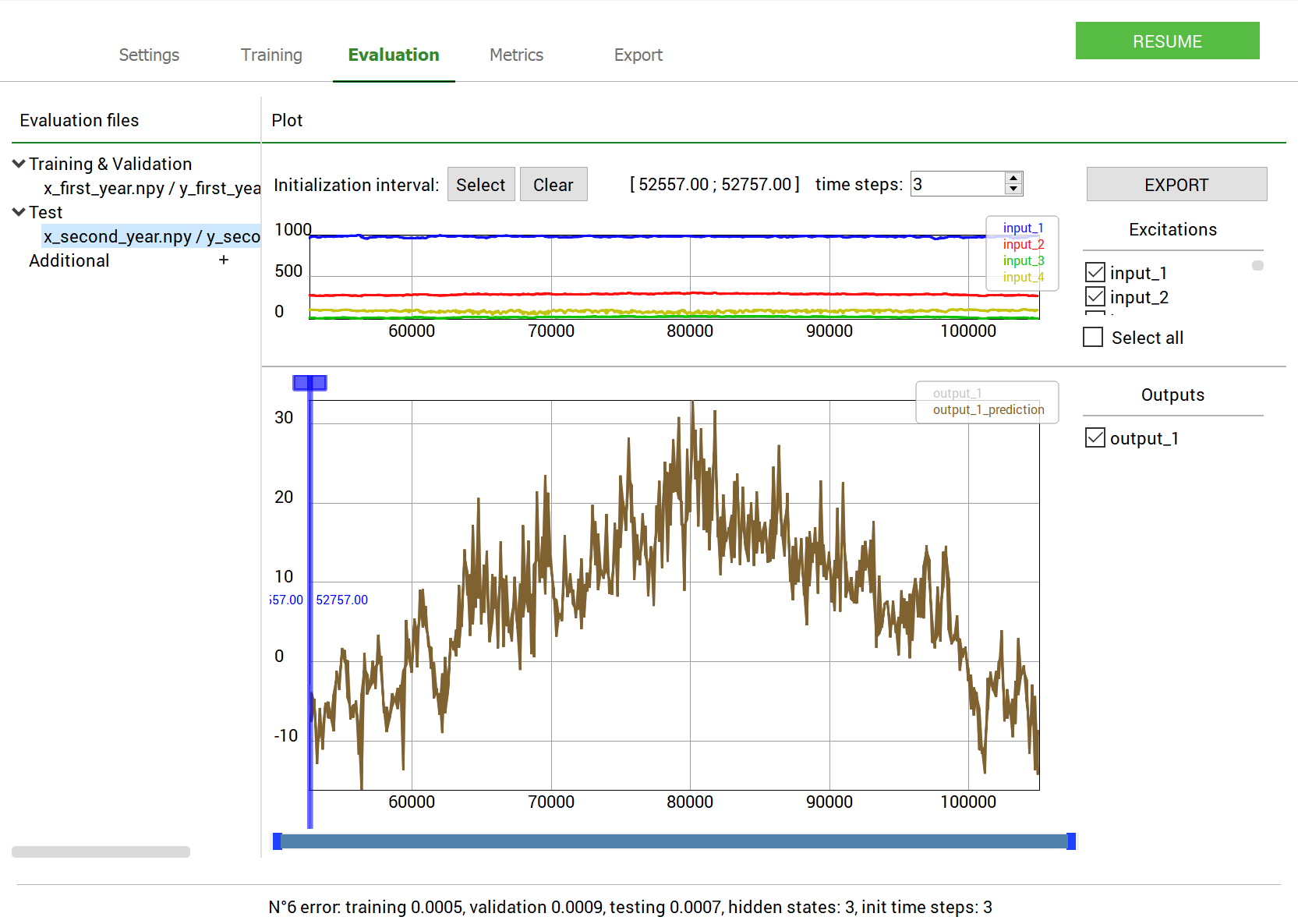

GUI operations: evaluating an intermediate model with initial condition: test case - Temperature forecasting

Note

When providing the input and output files for evaluation, the output file is optional and in this case only the default evaluation is available. The output file can also contain less data points than the input file, for example, only the initialization interval with few time points.

The Metrics panel allows the user to extract a set of metrics about that dataset (see. Metrics for the Discrete Dynamic model with GUI). For the Discrete Dynamic template these metrics looks as shown in the figure below:

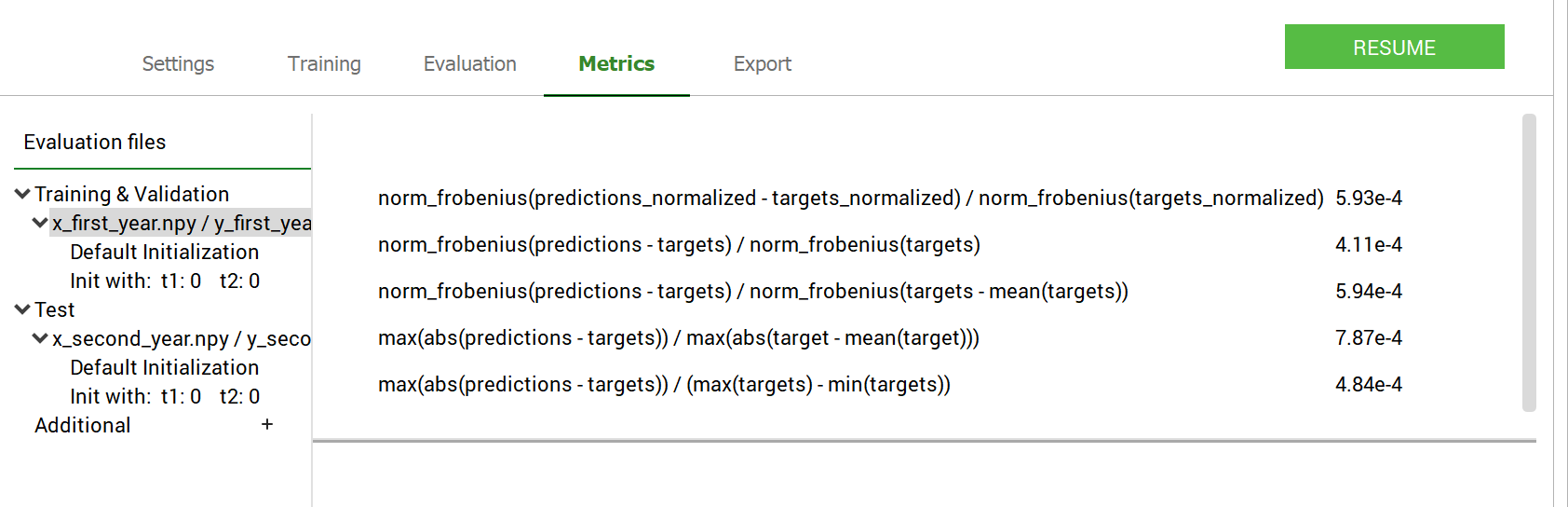

GUI operations: Extracting the metrics: test case - Temperature Forecasting

Exporting a Discrete dynamic model

To export a Discrete Dynamic model:

• Switch to the Export panel

• (optional) Select an intermediate model to export. By default, the final model is selected.

• Choose the export format: NeurEco .ernn format or FMU (requires embed license)

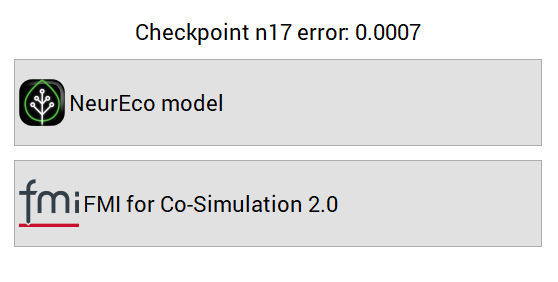

GUI operations: Exporting a model : test case - Temperature Forecasting

To create a Python script reproducing the main parts of the GUI project (see Export Discrete Dynamic from the GUI to the Python API):

• Go to Python/Export NeurEco to Python in the menu bar of the GUI

• Choose which parts of the project to export to a Python script

• Select the destination where to save the script

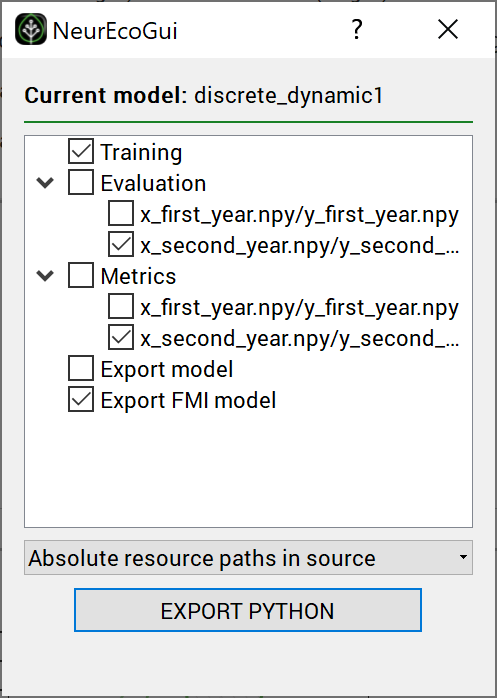

GUI operations: Exporting a Python script : test case - Temperature Forecasting

Warning

To be able to use the script exported from the GUI, the NeurEco Python API package should be already installed on your computer.
